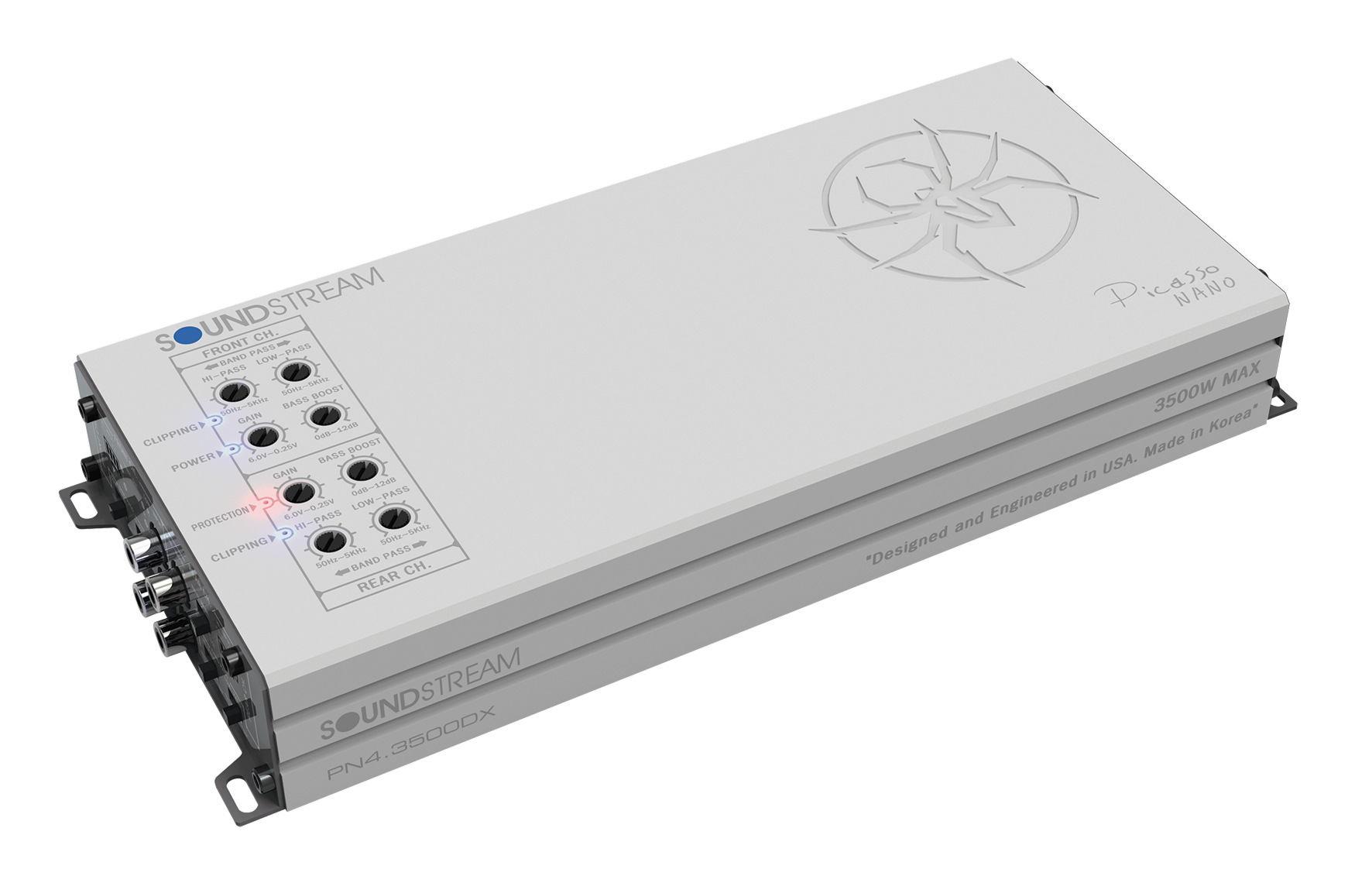

80%+ Efficient Class D Full Range 4-Channel Audio Amplifier
Compact 5.00" Wide Chassis Design for Installation Versatility
Hybrid Aluminum Alloy Heatsink for Optimum Heat Dissipation
Top-Mounted Pre-Amp Controls Easily Adjustable After Installation
Top-Mounted Operation Status, Protection & Clipping Indicators
2-ohm Stereo & 4-ohm Bridged Minimum Speaker Impedance
Direct Short, Thermal & Overload Circuits Protect Amplifier
250mV-6V Low-Level Audio Signal Input by RCA Interconnect
High Level / Speaker Level Audio Signal Input w/ Auto Turn-on
Audio Input Channels Selector Switch for 2 or 4 Channel Input
Direct Connect Power/Ground and Speaker Output Terminals
Variable 12dB High-Pass, Low-Pass & Band-Pass Crossovers
12dB 45Hz Bass Boost Increases Low Octave Harmonics
170w x 4 @ 4-ohm Stereo
300w x 4 @ 2-ohm Stereo
600w x 2 @ 4-ohm Bridged
3,500w Max Power
50Hz-5kHz 12dB/octave Variable High-Pass Crossover
50Hz-5kHz 12dB/octave Variable Low/Band-Pass Crossover
45Hz 0-12dB Variable Bass Boost
Frequency Response: 20Hz-20kHz
Total Harmonic Distortion: 0.05%
Signal-to-Noise Ratio: 80dB
Channel Separation: 55dB
Dimensions: 5“w x 1.5“h x 10.25“l
Fuse Rating: 50A x 2 (Internal)

80%+ Efficient Class D Full Range 4-Channel Audio Amplifier
Compact 5.00" Wide Chassis Design for Installation Versatility
Hybrid Aluminum Alloy Heatsink for Optimum Heat Dissipation
Top-Mounted Pre-Amp Controls Easily Adjustable After Installation
Top-Mounted Operation Status, Protection & Clipping Indicators
2-ohm Stereo & 4-ohm Bridged Minimum Speaker Impedance
Direct Short, Thermal & Overload Circuits Protect Amplifier
250mV-6V Low-Level Audio Signal Input by RCA Interconnect
High Level / Speaker Level Audio Signal Input w/ Auto Turn-on
Audio Input Channels Selector Switch for 2 or 4 Channel Input
Direct Connect Power/Ground and Speaker Output Terminals
Variable 12dB High-Pass, Low-Pass & Band-Pass Crossovers
12dB 45Hz Bass Boost Increases Low Octave Harmonics
Dash Mount Remote Gain Control Module Included
110w x 4 @ 4-ohm Stereo
200w x 4 @ 2-ohm Stereo
400w x 2 @ 4-ohm Bridged
2,000w Max Power
50Hz-5kHz 12dB/octave Variable High-Pass Crossover
50Hz-5kHz 12dB/octave Variable Low/Band-Pass Crossover
45Hz 0-12dB Variable Bass Boost
Frequency Response: 20Hz-20kHz
Total Harmonic Distortion: 0.05%
Signal-to-Noise Ratio: 80dB
Channel Separation: 55dB
Dimensions: 5“w x 1.5“h x 9“l
Fuse Rating: 40A x 2 (Internal)

80%+ Efficient Class D Full Range 2-Channel Audio Amplifier
Compact 5.00" Wide Chassis Design for Installation Versatility
Top-Mounted Pre-Amp Controls Easily Adjustable After Installation
Top-Mounted Operation Status, Protection & Clipping Indicators
2-ohm Stereo & 4-ohm Bridged Minimum Speaker Impedance
Direct Short, Thermal & Overload Circuits Protect Amplifier
250mV-6V Low-Level Audio Signal Input by RCA Interconnect
High Level / Speaker Level Audio Signal Input w/ Auto Turn-on
All-Pass RCA Output to Daisy-Chain Additional System Amplifiers
Direct Connect Power/Ground and Speaker Output Terminals
Variable 12dB High-Pass, Low-Pass & Band-Pass Crossovers
12dB 45Hz Bass Boost Increases Low Octave Harmonics
Dash Mount Remote Gain Control Module Included
220w x 2 @ 4-ohm Stereo
400w x 2 @ 2-ohm Stereo
800w x 1 @ 4-ohm Bridged
2,000w Max Power
50Hz-5kHz 12dB/octave Variable High-Pass Crossover
50Hz-5kHz 12dB/octave Variable Low/Band-Pass Crossover
45Hz 0-12dB Variable Bass Boost
Frequency Response: 20Hz-20kHz
Total Harmonic Distortion: 0.05%
Signal-to-Noise Ratio: 80dB
Channel Separation: 55dB
Dimensions: 5“w x 1.5“h x 9“l
Fuse Rating: 30A x 2 (Internal)
