カーオーディオアンプ

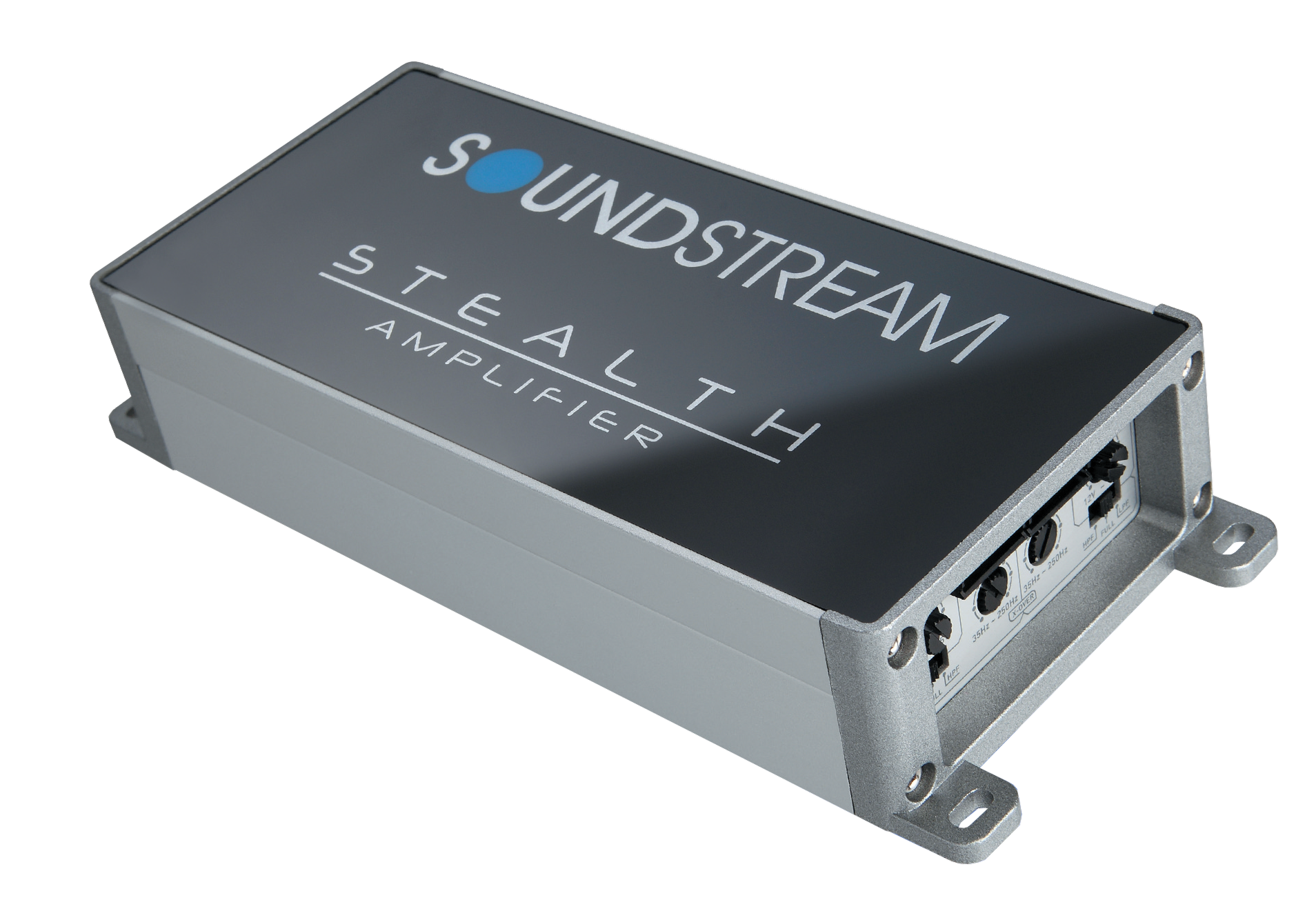

STEALTHシリーズ

  • Class‑D full range stereo with 2Ω stability and low‑power consumption
  • Advanced design: Tri‑mode capable, MOSFET DC‑DC PWM supply, 4‑way protection, FR‑4 PCB & SMD technology
  • User‑friendly features: RCA/high‑level inputs, adjustable filters, bass boost, and ultra‑slim size

  • ST1.700D

    Out Power: 300w x 1ch @ 4 Ω RMS
    450w x 1ch @ 2Ω RMS
    1,000w Max Power
    Frequency Response: 20Hz–150kHz
    Speaker Impedance: 2Ω, 4Ω, 8Ω
    Input Sensitivity: 0.5V–12.0V (Line/Low)
    Filter Frequency: Low-Pass: 35–250Hz / 12dB Octave
    Subsonic Filter: 10–50Hz
    Bass Boost: 0–12dB @ 45Hz
    Signal-to-Noise Ratio (S/N): 70dB
    Total Harmonic Distortion (THD): <0.05%
    Power Supply: 11–16V DC
    Dimensions (WxHxL): 78.5mm x 35.5mm x 150mm
    Weight: 0.8kg
    Output Power TR Design: Class D Mono

  • ST4.1000D

    Out Power: 900w x 4ch @ 4 Ω RMS
    125w x 4ch @ 2Ω RMS
    250w x 2ch Bridged
    1,000w Max Power
    Frequency Response: 20Hz–30kHz (4Ω)
    Speaker Impedance: 4Ω, 8Ω
    Input Sensitivity: 0.5V–12.0V (Line/Low)
    Filter Frequency: Low-Pass: 35–250Hz / 12dB Octave
    High-Pass: 35–250Hz / 12dB Octave
    Channel Separation: 50dB
    Signal-to-Noise Ratio (S/N): 70dB
    Total Harmonic Distortion (THD): <0.05%
    Power Supply: 11–16V DC
    Dimensions (WxHxL): 78.5mm x 35.5mm x 150mm
    Weight: 0.8kg
    Output Power TR Design: Digital Full Range
